Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system

Name: Inline Xray parts counter with ai algorithm and connected MESERPWMS system
Brand: WELLMAN
Price: 1 USD

Brand Name : WELLMAN

Model Number : IL-1000

Certification : CE,ISO9001,FDA

Place of Origin : China

Payment Terms : T/T

Delivery Time : 7 work days

Packaging Details : Wooden case

MOQ : 1

Supply Ability : Worldwide supply

Contact Now

Inline X-ray Electronic Parts Counter with AI Algorithm and Connected MES/ERP/WMS System

Working Principle

Inline X-ray parts counter with ai algorithm and connected MES/ERP/WMS system

Workflow Process

Loading: Automatic manipulator loading after reel vehicle insertion, supporting 7 to 15 inch reels
Max Loading Quantity: 200 reels (7" with 8mm thickness)
Barcode Scanning: Comprehensive barcode and QR code scanning capabilities
Reel Transfer: Automatic belt transfer system
Labelling: Automatic printing and pasting of labels after counting with automatic data upload
Unloading: Automatic manipulator placement into reel vehicle

Key Advantages

X-ray Technology

80kV microfocus X-ray tube with long service life and maintenance-free operation

High-Definition Imaging

17-inch high-definition digital flat panel detector for clear imaging

Ultra-Fast Counting

12 seconds per reel at maximum speed

Versatile Compatibility

Supports 17-inch maximum reel/tray with moisture-proof bag compatibility

AI & System Integration

Free lifelong AI algorithm updates with MES/ERP/WMS compatibility

Operation Modes

Manual/auto dual mode operation with AGV docking and unmanned operation support

Data Management

Comprehensive work order management with counting data statistics and query capabilities

Hardware Specifications

Safety Features

Radiation Leakage

No leakage (international standard: ≤1μSv/h)

Back Door Safety Interlock

Immediate X-ray tube power cutoff when back door opens, prevents X-ray activation when door is open

Emergency Stop

Front operation position emergency stop button for immediate power cutoff

Performance Specifications

Reel Size	Parts Size	Quantity	Accuracy	Speed
7" (180mm)	01005	40000	99.98%	14-15s
7" (180mm)	0201	10000	99.99%	13-15s
7" (180mm)	0402	10000	99.99%	13-15s
10" (254mm)	1206	5000	99.99%	12-15s
15" (380mm)	1206	10000	99.99%	12-15s

AI Deep Learning Algorithm

Our counting software utilizes powerful artificial intelligence deep learning algorithms that automatically identify components without manual algorithm binding. The AI system learns from counted component data including:

Aspect ratio analysis
Corner angle measurements
Slope analysis between components from inside to outside
Component image deformation patterns from inside to outside

As counting operations increase, accuracy continuously improves. The system easily handles similar components or larger trays with enhanced precision over time.

Cloud Database Integration

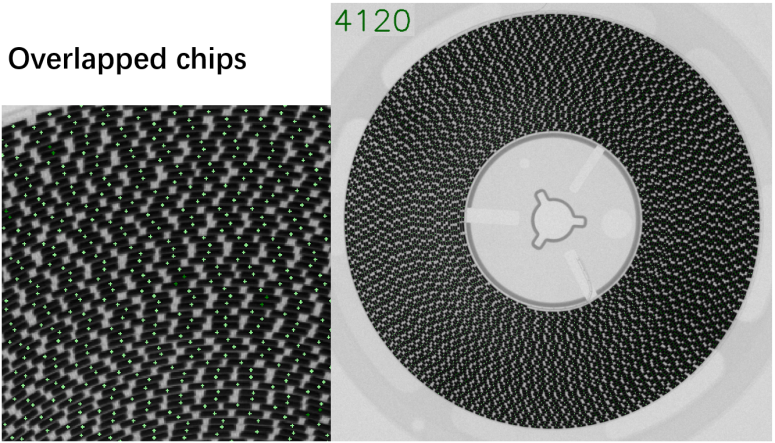

Sample Images
